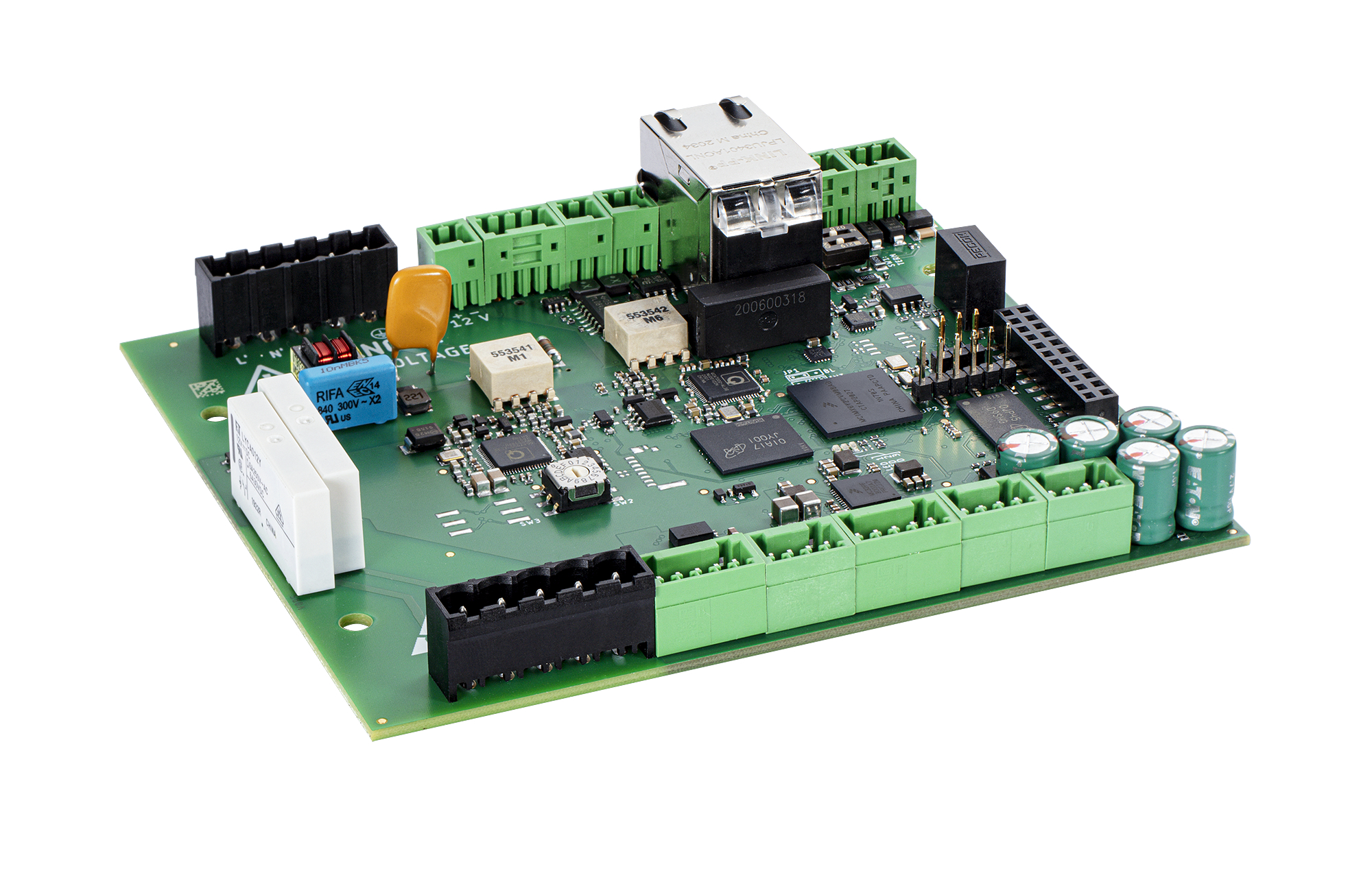

Charge Control C
Smart EVSE Controller for ISO15118 AC Charging Solutions
Using the Charge Control C, your AC charging station becomes smart, flexible, and fully compliant with IEC 61851, ISO 15118-2, ISO15118-20 standards and compatible with OCPP 1.6 / 2.0.1
This compact and versatile SECC comes pre-integrated with the open-source EVerest software stack,
enabling seamless integration.
With its highly adaptable architecture, the Charge Control C is ideal for EVSE Manufacturers of AC charging stations looking to build future-ready, interoperable AC charging infrastructure with full protocol
support and advanced EV communication features like Plug and Charge (PnC) or Bidirectional (Bi-Di) Charging.
For further technical documents, please use the following link:
chargebyte EVerest SECC documentation
Easily Integratable
Seamlessly integrates into existing systems, ensuring a smooth and hassle-free installation process.
Extensive Capabilities
A complete solution that accelerates time to market, equipped with a multitude of features to cater to several needs.
Open Source Charging Stack
Offers unparalleled flexibility, allowing users to modify and adapt the software to their specific requirements, fostering innovation and customization.
Future-Proof Hardware and Software
Trust in cutting-edge charging communication expertise.
Its connectivity allows easy updates via OCPP, USB, or Rauc, ensuring adaptability to evolving industry standards.
Features
Applications
Specifications
| Temperature | -20 °C - 70 °C |
| Power consumption | Max. 13 W |
| Power supply | 12 V |
| Outline dimension | 120 mm x 107.3 mm x 27.6 mm |
| Weight | 110 g |
| Interfaces | Ethernet, PLC over mains, Relay outputs (250 VAC/ 6 A) with sense feedback, RS-485 (not galvaniacally isolated, with failsafe biasing), USB, 1-Wire Temperature Interface, Locking Motor Interface, Fan output |
| Other | RoHS / REACH compliant |
