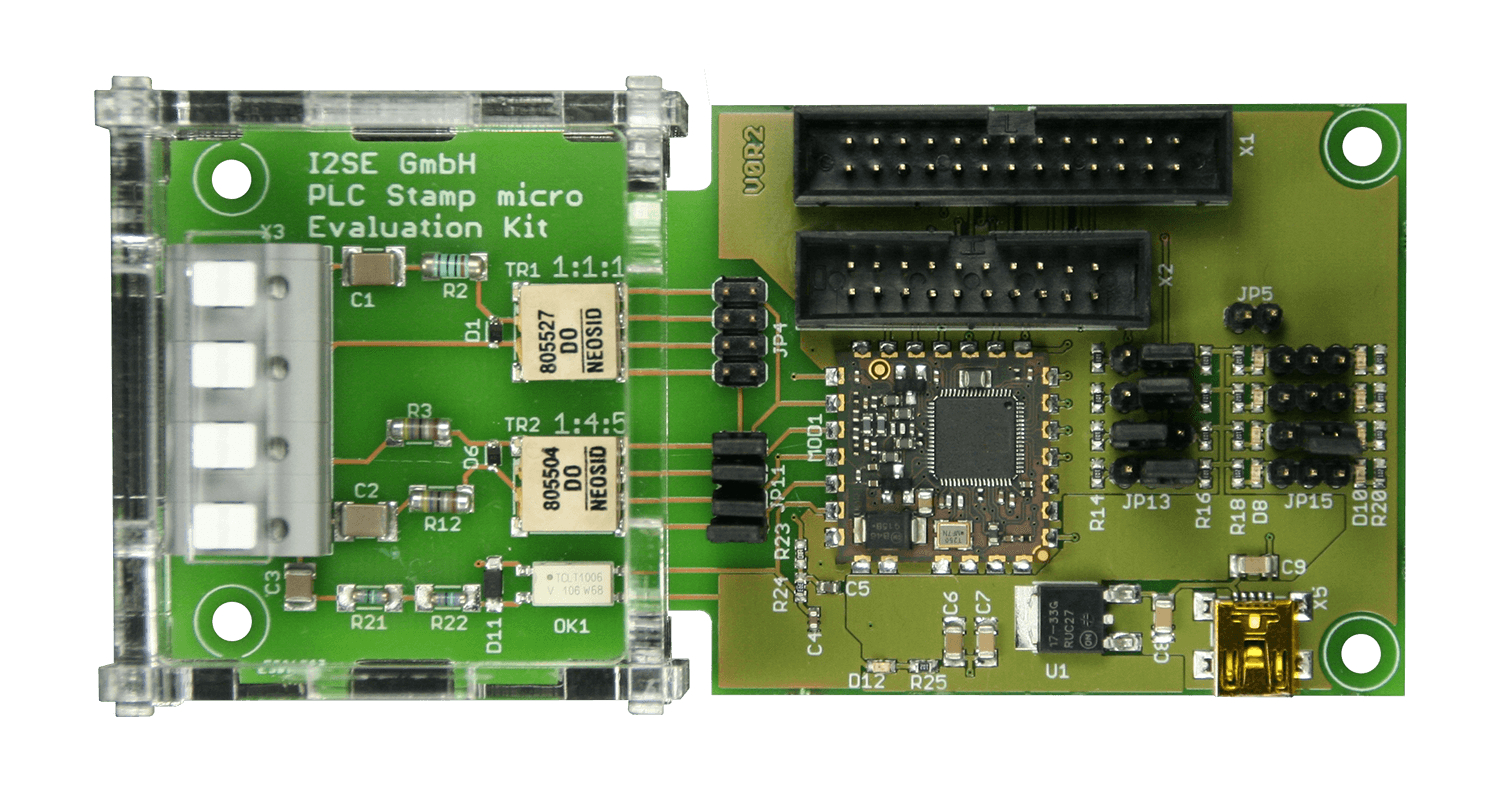

PLC Stamp Micro 2 Evaluation Board
Evaluation Board for HomePlug Green PHY® based Powerline Communication.
Versatile Evaluation and Development Platform
This kit is the perfect foundation for evaluating the Qualcomm QCA 7000 embedded on our PLC Stamp Micro 2, giving your application access to powerline communication.
Diverse Applications
The EVB supports the creation of a wide range of products, from building automation components to electric vehicle charging electronics.
Features
Based on the HomePlug® Green PHY PLC-Chip QCA7000
Suitable for direct connection to mains / powerline or to the CP signal in electric vehicle charging
Integrated AC isolation
External 5 V power supply (USB)
GPIO / UART / SPI-Interface
Specifications
| Temperature | 0 °C - 70 °C |
| Powerline Controller | Qualcomm QCA7000 |
| Power Supply | 5 V via USB |
| Power Consumption | <2 W |
| Outline dimension | 122 mm x 60 mm x 27 mm |
| Data Rate | 10 Mbit/s max. |
| Reach | 300 m max. |
| Transformer | 1:4:5 and 1:1:1 Winding Ratio |
| Other | RoHS / REACH compliant |
