Charge Module S HAT for Raspberry Pi


Evaluation HAT for ISO15118-2 DC PEV Side Communication Module.
Ideal to gain experience with our Charge Module S.

Enhanced EV Communication Testing

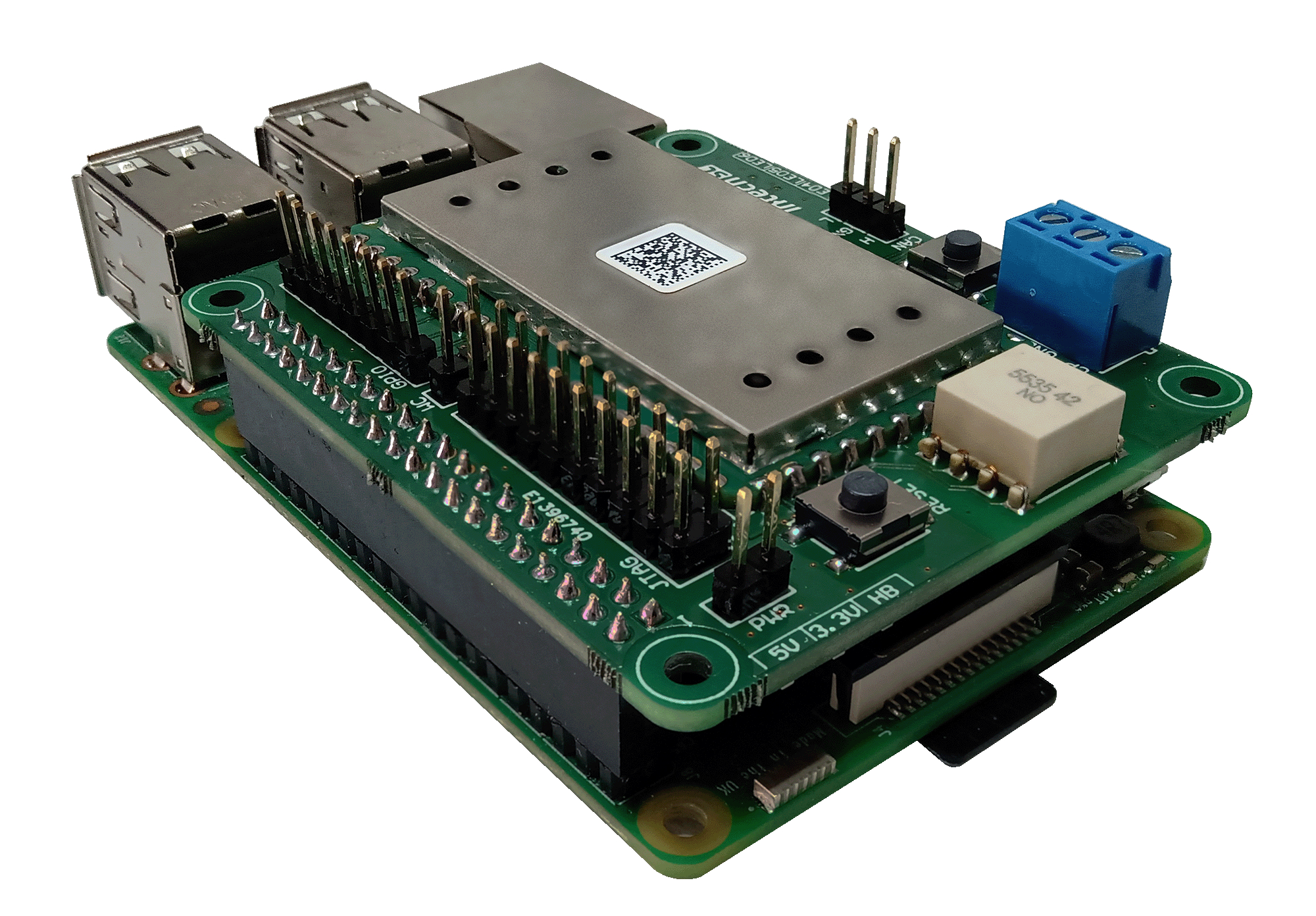

The Charge Module S HAT for Raspberry Pi is designed to enhance electric vehicle (EV) communication testing by leveraging the capabilities of the Raspberry Pi.
It supports ISO 15118 and DIN 70121 protocols, providing a comprehensive solution for EV charging communication development and analysis.

DIY Assembly

The Charge Module S HAT requires assembly, giving users the opportunity to build the module themselves. This hands-on approach provides a deeper understanding of the hardware and enhances the customization and learning experience.

Features

100% deterministic real time behavior, combined with the flexibility of Linux
ISO 15118 / DIN 70121 Communication Module
ISO 15118 – CAN Gateway
Updates via XCP on CAN (SW included)
PLC diagnose via UDS (SW included)
Configurable via UDS (SW included)
7 GPIOs for additional digital / analog appliances (configuration via UDS)
Socket CAN interface up to 1Mbit/s
Boot up in less than 1.5s
Powered through Raspberry Pi (Not Included)
Code examples in Phyton included

To get the full experience with the product, our Charge Module S is also required.
